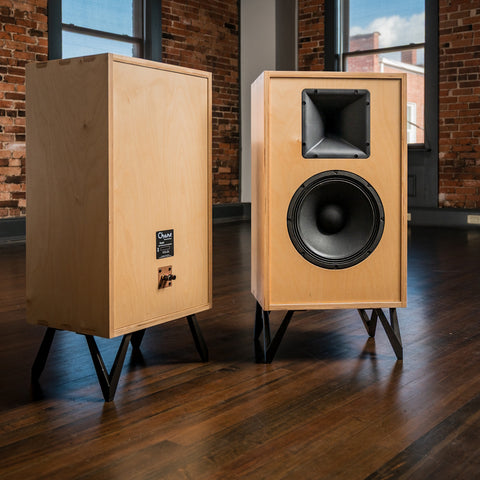

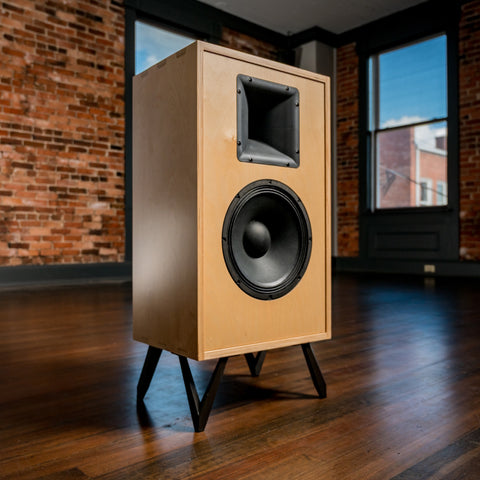

Chane 870

Price per Pair

Tone-Setting Music at Home.

95 dB, 8 Ohms, 38 Hz. The dimensional agility and precision of an audiophile stand monitor and the efficiency, authentic tonality, and dynamic ease of the much bigger loudspeaker.

This is the new era of fine home sound.

Neodymium, Titanium, dovetailed Baltic Birch hardwood plywood, purist horn, 14ga air core inductors, detachable aluminum legs. Classic down-ported bass reflex in 85 liters.

Beyond Convention.

Chane's model 870 drives at the heart of music in a medium-sized, 12" format with all the excellence of Chane's 800 Series range. Known for its remarkably quick and transparent sound, listeners find this type superb for deep musical involvement. Chane's expert tuning optimizes all domains, with high efficiency and mild amplifier loading perfect for better-sounding amplifiers of any kind.

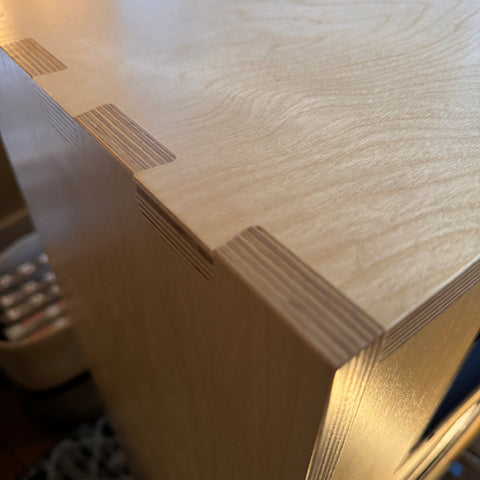

Model 870 is CNC-machined in top-grade Baltic Birch hardwood plywood with precise dovetail corner joinery. Choose from attractive colors and a choice of finishes.

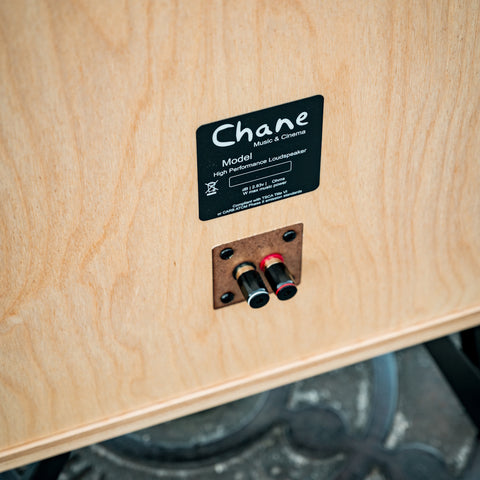

Chane's 800 Series uses only heavy-gauge air core inductors, Clarity CSA highpass capacitors, and biflar-wound non-magnetic resistors. Heavy non-magnetic gold-plated input posts.

Solid aluminum designer legs with stainless fasteners are included and easily installed in minutes. Consult with Chane on your preferred finish and allow 60 days production time.

Features

1" Titanium compression driver with Neodymium motor, proprietary phase plug, and 1.75" edgewound voice coil.
Heavy wall PBT-PET horn, 90° x 60°
300mm/12" mid-woofer with cast frame, low inductance Neodymium motor, and cellulose cone with flat edge suspension.
Four-domain optimized, low error dividing network

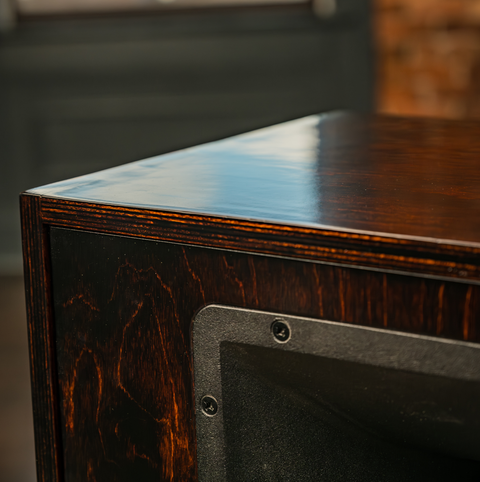

Premium Baltic Birch damped acoustical cabinet with dovetailed edges and glued-inset front and back boards. Natural fiber lining. Hard lacquer or rubbed wax, available in colors and sheens.

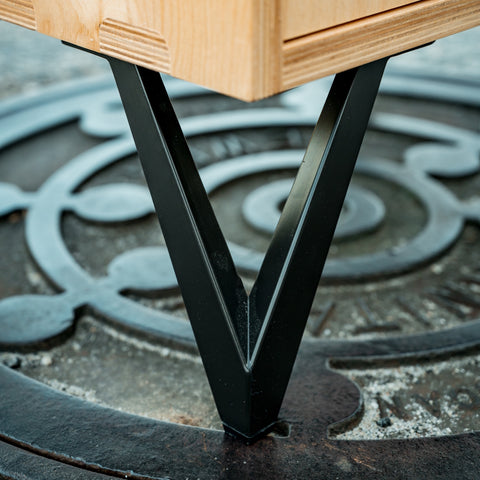

6" cast aluminum legs, removable
The 870 are individually packed in heavy foam cradles and a double-wall carton
The 870 includes Chane Music & Cinema's 30-day in-home satisfaction guarantee (see Terms)
Five year warranty

Specifications

222 x 222mm treble horn, 90° horizontal and 60° vertical radiation pattern
300mm/12" mid-woofer Neo midwoofer with natural paper cone, low-inductance motor, and extended response.
Bottom-ported bass reflex tuning, 35Hz.
Cabinet dimensions - 330 x 460 x 750mm; 13 x 18.1 x 29.5in (DxWxH)
Weight -
Frequency Response - 38Hz - 20kHz (+/- 3dB)
Impedance - 8 Ohms nominal
Sensitivity - 95dB (2.83v, 1M, avg in-room)
Sensitivity - 90dB (2.83v, 1M, calculated avg power)
Suggested Amplifier - 10-100W
