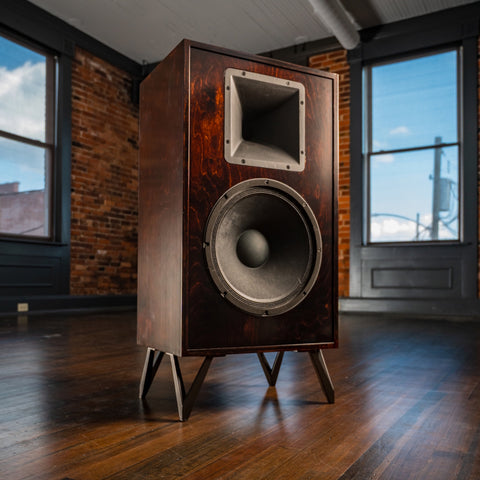

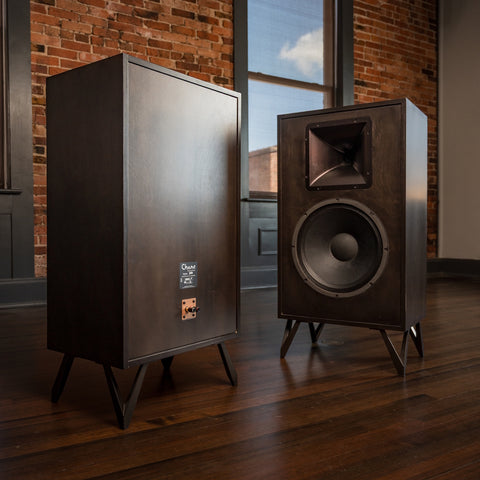

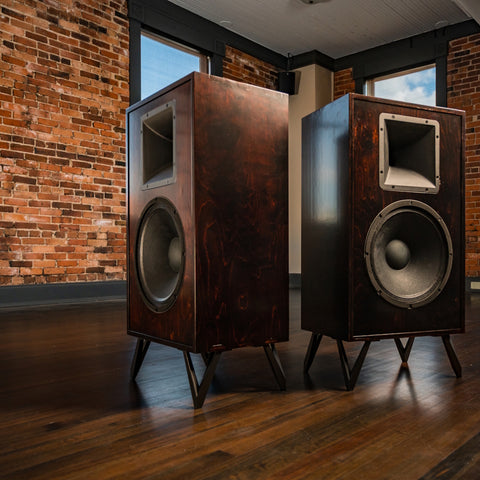

Chane 880

Speed & Power

Chane's model 880 epitomizes the large format music speaker with quality casework and precise, careful acoustical tuning. Audiophiles value this type for the low distortion and enormous dynamic responsiveness of a large acoustical system, while Chane's high definition filter networks minimize error across all domains and present a load perfect for today's best-sounding amplifiers, tube or transistor.

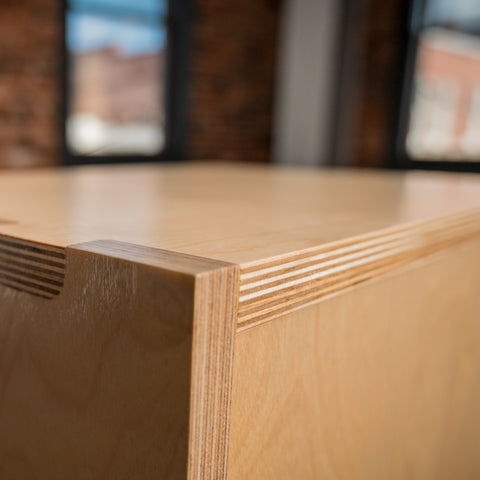

Model 880 is made from top-grade Baltic Birch hardwood plywood with precise computer-milled dovetail corner joinery. Choose from many attractive finishes under either lacquer or rubbed wax.

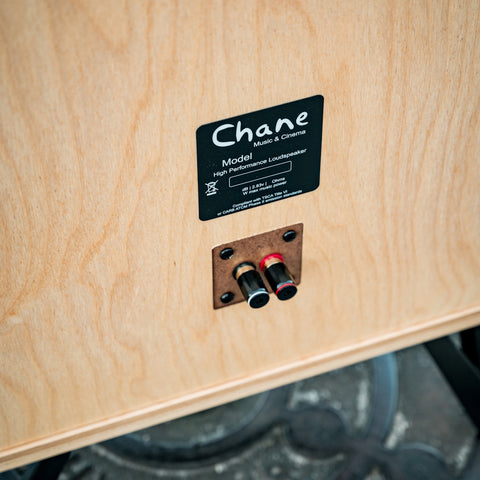

Chane's 800 Series uses only heavy-gauge air core inductors, Clarity CSA highpass capacitors, and biflar-wound non-magnetic resistors. Heavy gold-plated input posts.

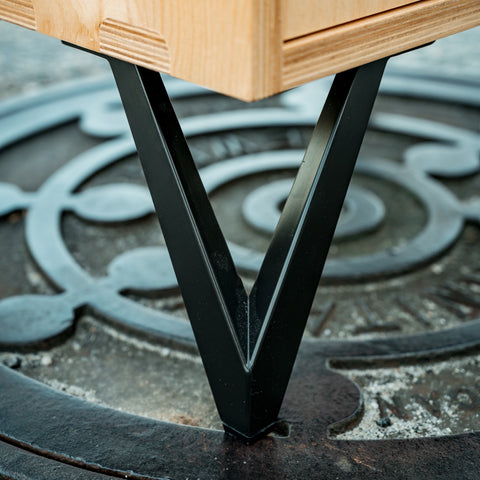

Solid aluminum designer legs with stainless fasteners are included and easily installed in minutes. Consult with Chane on your preferred finish and allow 60 days production time.

• 1.4" Titanium Nitrided ceramic compression driver with Neodymium motor, proprietary phase plug, and 2.4" edgewound voice coil.
• Cast aluminum horn, 80° x 60°
• 380mm/15" mid-woofer with cast frame, low inductance Neodymium motor, and cellulose cone with flat edge suspension.
• Four-domain optimized, low error dividing network.
• Premium Baltic Birch damped acoustical cabinet with dovetailed edges and glued-inset front and back boards. Natural fiber lining. Hard lacquer or rubbed wax, available in colors and sheens.
• 6" cast aluminum legs, removable
• The 880 are individually packed in heavy foam cradles and a double-wall carton
• The 880 includes Chane Music & Cinema's 30-day in-home satisfaction guarantee (see Terms)
• Five year warranty

• 270 x 270mm treble horn, 80° horizontal and 60° vertical radiation pattern
• 380mm/15" mid-woofer Neo midwoofer with natural paper cone, low-inductance motor, and extended response.
• Bottom-ported bass reflex tuning, 35Hz.
• Cabinet dimensions - 365 x 520 x 850mm; 14.4 x 20.5 x 33.5in (DxWxH)
• Weight -
• Frequency Response - 38Hz - 20kHz (+/- 3dB)
• Impedance - 8 Ohms nominal
• Sensitivity - 97dB (2.83v, 1M, avg in-room)
• Sensitivity - 92dB (2.83v, 1M, avg power)
• Suggested Amplifier - 10-100W
